Chasing Gladius Mini S 200m pack

About this product

Due to shipping restrictions, we are not currently able to send this item to locations outside of the UK. Specialist shipping is also required so additional postage costs will apply. We will be in contact once you have placed your order to confirm these costs with you, or,  if you wish to discuss this before your order, please contact us on 01803 865913 or by email at customer.services@nhbs.com.

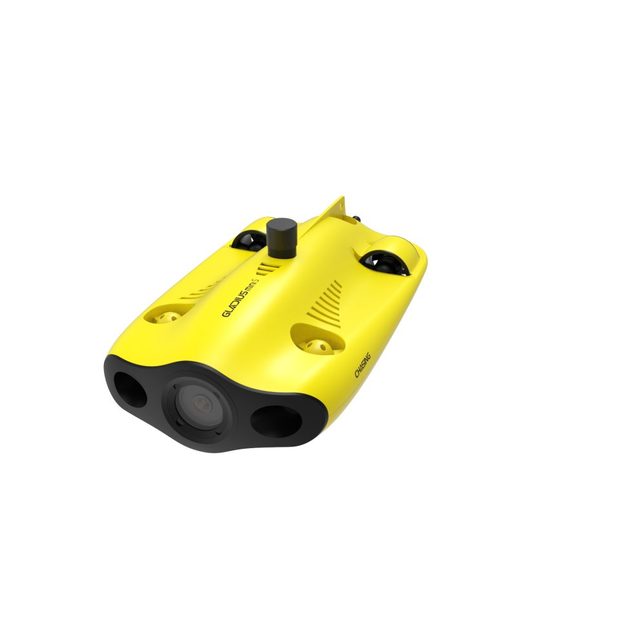

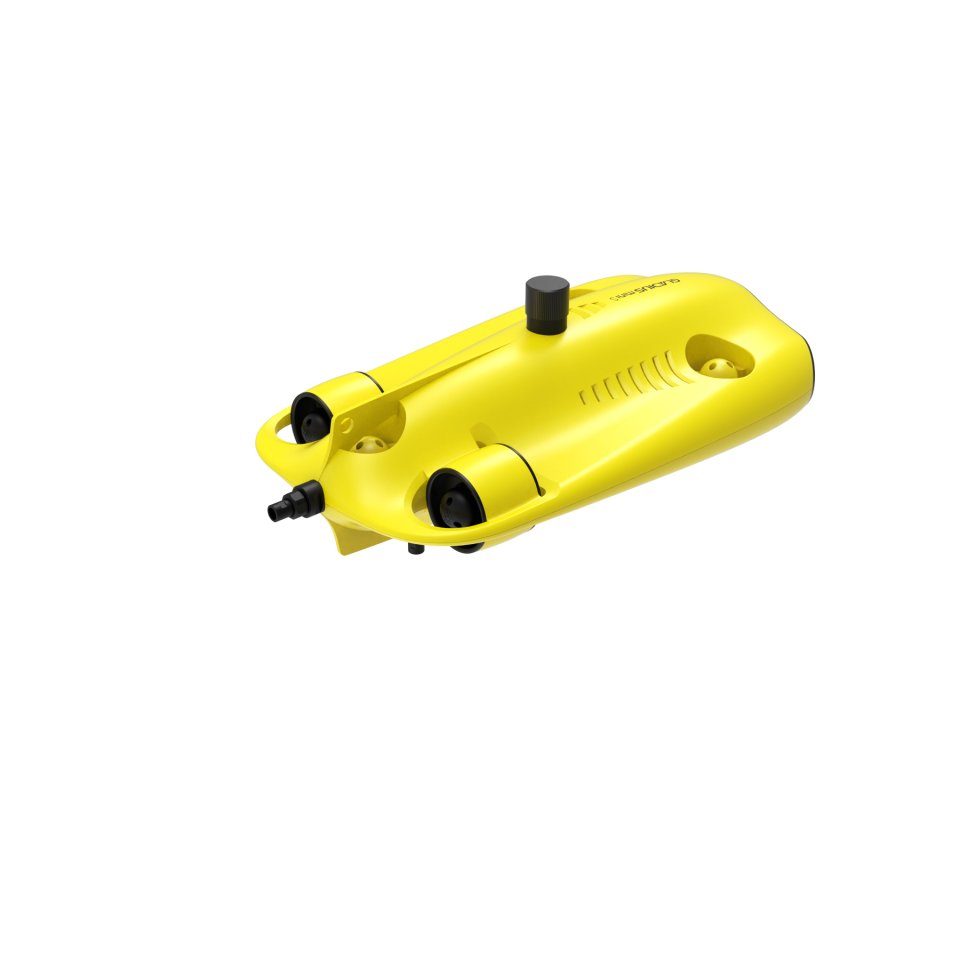

The Chasing Gladius Mini S is a powerful but budget-friendly option for those who wish to take their underwater exploration and survey to the next level. This Remotely Operated Underwater Vehicle or ROUV greatly enhances your capabilities to survey in an unobtrusive and respectful way to both the environments and wildlife that you may be operating around. With a deployment time of around three minutes, the drone requires little preparation and can be operated by one individual due to its small form factor and weight, reducing the amount of staff needed for survey. Increasing output and reducing costs.

The drone is equipped with two rechargeable 4800mAh batteries giving a healthy run time of up to 4 hours under standard use. Five powerful motors with patented 'Anti-stuck' technology propel the unit through the water at a maximum speed of 4kts. Controlled by the tethered control unit which is run through a tablet or phone of your choosing, there is no risk of losing connection. A visual survey is conducted through a 4K + EIS image stabilised camera with a 1/2.3" SONY CMOS sensor paired with an F2.8 lens. This can provide a max 4K video resolution with a 12MP max stills photo resolution. The camera has 150° FOV and is flanked by two 1200 Lm lights, providing excellent visibility in low light conditions and with a colour rendering index of 85, helping show images in their true colours deep underwater. Lights can be dimmed by 3 steps from the control console. The control app provides a real-time video feed for you to control your drone and real-time environmental data so that you can conduct surveys in ideal conditions. All of this can be achieved to a maximum working depth of 100m.

Please click HERE for the product manual.

Warranty: Minimum 1 year (individual components may have longer warranties, please contact us for more information)

Contents

• Drone
• Direct-Connect Remote Controller
• 200m tether data cable
• 64GB SD card

Specification

Drone

• Size: 40 x 22.6 x 14.5 cm
• Weight: 2.7kg
• Maximum Depth: 100m
• Maximum Speed: 2m/s (4 kn)
• Runtime: 4 hr (Calm water); 1 H (Maximum speed & light)
• Battery: 4800 mAh × 2
• Operating Temperature: -10 ~ 45 degrees °C

Camera

• CMOS: 1/2.3"
• Lens: F2.8
• Focus range: 0.3m to infinity
• ISO range: 100 - 6400
• FOV: 150°
• Maximum picture resolution: 12MP (4000 x 3000)
• Format: JPEG/DNG
• Video: 1080p: 1920 x 1080@25/30/50/60/100/120fps 4K:3840 x 2160@25/30fps
• Slow motion: 4x: 1920 x 1080@ 30fps (120fps) 8x :1280 x 720@30fps (240fps)
• Time-lapse: 4K/1080p supported
• Video stream: 60M
• Video format: MP4
• SD card: 64GB

LED auxiliary lights

• Brightness: 2 x 1200lm
• Colour temperature: 5000K - 5500K
• CRI: 85
• Dimming: Three-point

Sensors

• IMU: Three-axis gyroscope/accelerometer/compass
• Depth sensor: ≤± 0.25m
• Temperature sensor:  ≤± 2°C

Tether and winder

Weight:
Cable length: 200m

Remote controller

• Size: 160 x 155 x 125 mm
• Weight: 685 g
• Battery: 2500mAh
• Runtime: ≥6h (depending on use-case)
• Wireless: Wi-Fi supported
• HDMI: Supported
• Handle spring: Maximum support 10"
• Wired port type: lightning, micro USB, USB type C

Charger

• Power: 3A/12.6V
• ROV charging time: 3.5hr
• Remote controller charging time: 2hr
