Chasing M2 PRO MAX - Advanced Pack

About this product

Due to shipping restrictions, we are not currently able to send this item to locations outside of the UK. Specialist shipping is also required, so additional postage costs will apply. We will contact you once you have placed your order to confirm these costs. If you wish to discuss this before your order, please contact us on 01803 865913 or by email at customer.services@nhbs.com.

Chasing M2 PRO MAX is the most capable and versatile industrial drone available from Chasing Innovation. The drone comes with five accessory ports which are infinitely configurable with up to 20 accessories along with third-party accessories. When paired with the innovative quick-mount and dismount system you can quickly and easily configure your remote vehicle for any eventuality or mission type on the 4 axis of the drone body. The drone can be omnidirectionally controlled using the included remote controller through the chasing app on a mobile device which can be swapped out for a dedicated control console or waterproof controller if needed.  Unique to the M2 PRO and PRO MAX is the ability to buy and use an optional shore-based power supply system or C-SPSS which can transform your limited time underwater to however long you desire. Or you can use the included swappable batteries, with this package coming with two 300Wh batteries for a total life of just over 4 hours each depending on usage.

For underwater photography, the 4K UHD video and the 12-megapixel stills camera with EIS (enhanced image stabilisation) will give you all the capability needed for highly detailed pictures and video deep underwater. Accompanied by two poseable 4000Lm floodlights, getting images in dark places is no issue. A colour rendering index of 85 helps capture true-to-life colour despite the desaturation experienced at depth. The optional included Floodlight 2.0 can be mounted using the mounting rails on either side or top/ bottom for an additional two points of 2000lm illumination. Images, video and live viewing can be shared across multiple devices using Chasing's sharing app and platform. Media are also saved locally to the integrated/ replaceable 128 GB SD card. All media can be streamed to a larger screen with the included HDMI port and photography options allow for slow-motion or time-lapse photography enhancing the options available to the user.

The included 200m tether will enable you to exploit the maximum diving depth of 200m (some accessories may be rated to shallower maximum depths) and additional optional tethers up to 400m give you a large radius in which you can explore with the Chasing M2 PRO MAX. Coupled with the included E-Reel, there is no need to wind in or play out the tether enabling uninterrupted operation by the user.

Please click HERE for the user manual

Warranty: Minimum 1 year (individual components may have longer warranties, please contact us for more information).

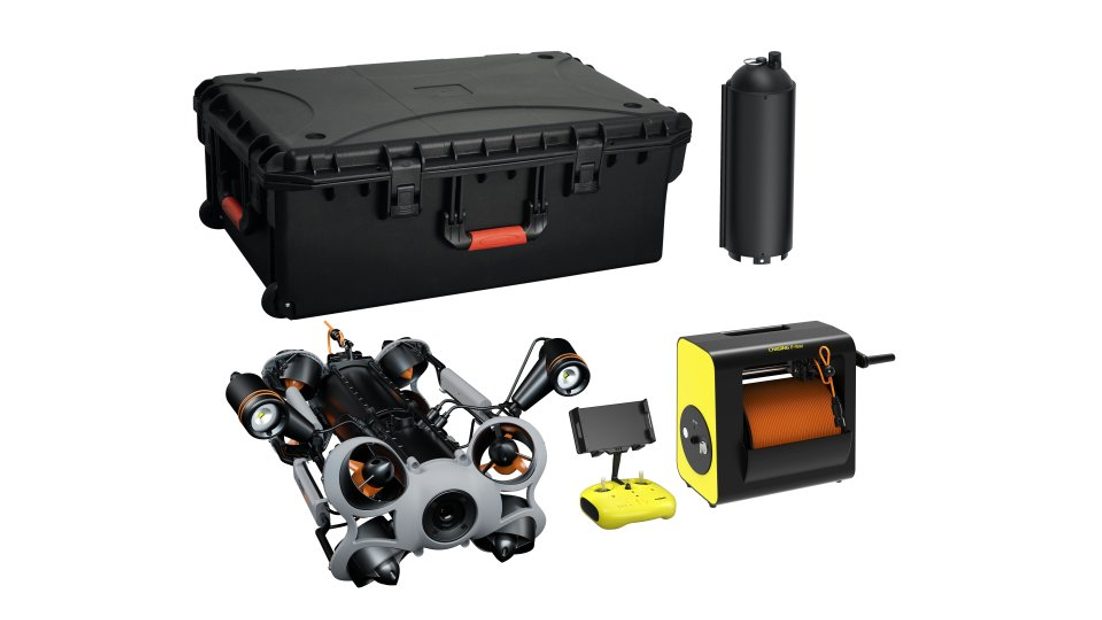

Contents

• 1 x Drone
• 2 x 300Wh batteries
• 1 x E-reel with 200m tether
• 1 x Hardcase
• 1 x Chasing floodlight 2.0
• 1 x Assorted spares and consumables

Specification

ROV

• Size: 608 x 294 x 196 mm (ex. Floodlight)
• Weight: ~8Kg
• Maximum depth: 200m
• Load (X/Y/Z) axis: 5.7 / 4.0 / 3.6 Kg
• Runtime: Up to 4 hours
• Battery: 300Wh
• Operating temperature: -10°C - 45°C

Camera

• CMOS: 1/2.3
• Lens: F2.8
• Focus Range: 0.3m~∞
• ISO Range: 100-6400
• FOV: 150°
• Maximum image resolution: 12MP
• Image format: JPEG/DNG
• Video: 4K: 3840 x 2160 30fps / 1080p: 1920 x1080 30/60/120fps
• Slow Motion:
• Time Lapse: 4K / 1080p
• Video maximum stream: 60M
• Video Format: MP4
• SD Card: 128GB

LED Lights

• Brightness: 2 x 4000 lm
• Colour Temperature: 5000 K ~ 5500 K
• CRI: 85
• Dimming: Three-step

Charger

• Adapter: 8 A / 25.2 V
• ROV Charging Time: 2.5 Hr
• Remote Controller Charging Time: 2 Hr

Remote Controller

• Size: 160 x 155 x 125 mm
• Weight: 685 g
• Battery Capacity: 2500 mAh
• Battery Life: ≥6H (Depend on environment)
• Wi-Fi: Yes
• HDMI: Yes
• USB: Yes
• Phone / Tablet Clip Maximum support: 10 inches

Sensor

• IMU: Axis Gyro/ Accelerometer/ Compass
• Depth Sensor: ＜±0.25 m
• Temperature Sensor: ＜±2 ℃
