Chasing M2 S - Standard Pack

About this product

Due to shipping restrictions, we are not currently able to send this item to locations outside of the UK. Specialist shipping is also required so additional postage costs will apply. We will be in contact once you have placed your order to confirm these costs with you, or,  if you wish to discuss this before your order, please contact us on 01803 865913 or by email at customer.services@nhbs.com.

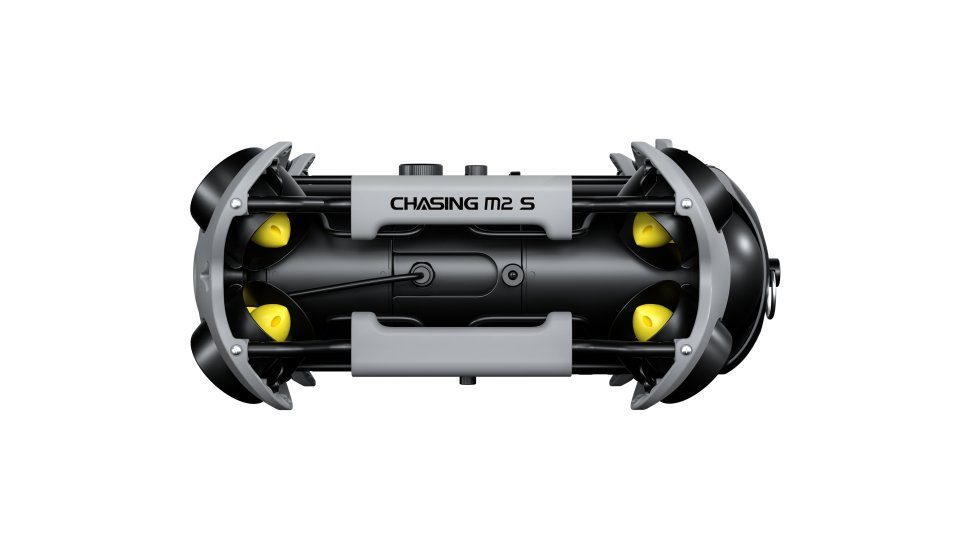

The Chasing M2 S is a powerful, entry-level industrial-grade drone option for those who wish to take their underwater exploration and survey to the next level. This Remotely Operated Underwater Vehicle or ROUV greatly enhances your capabilities to survey unobtrusively and respectfully in and around the environments and wildlife that you may be operating. With a quick deployment time, the drone requires little preparation and can be operated by one individual due to its small form factor and weight, reducing the amount of staff needed for survey. Both increasing output and reducing costs.

This Standard package contains the drone, controller dock, 97.68Wh battery, carrying case and a 200 m tether with manual reel and an optional Floodlight 2.0.

The drone is equipped with a rechargeable replaceable 97.68Wh battery giving a healthy run time of up to 4 hours under standard use. Four powerful motors with patented 'Anti-stuck' technology propel the unit through the water at a maximum speed of 4kts. Positioning of the unit is controlled by intelligent NeptuneX algorithms which help minimise the effects of oceanic drift and currents on the unit, enabling precise control no matter the conditions. Controlled by a tethered RC3 control unit which is run through a tablet or phone of your choosing, there is no risk of losing connection. A visual survey is conducted through a 4K + EIS image stabilised camera with a 1/2.3" SONY CMOS sensor paired with an F2.8 lens. This can provide a max 4K video resolution with a 12MP max stills photo resolution. The camera has 150° FOV and is flanked by two 2000 Lm lights, providing excellent visibility in low light conditions and with a colour rendering index of 85, helping show images in their true colours deep underwater. Lights can be dimmed by 3 steps from the control console. This is complemented by the addition of an optional Chasing floodlight 2.0 which adds two additional points of 2000lm illumination. The control app provides a real-time video feed for you to control your drone and real-time environmental data so that you can conduct surveys in ideal conditions. All of this can be achieved to a maximum working depth of 100m.

The drone can be adapted for any situation with the addition of optional modules (please see accessories). These include a single-axis claw, floodlight array, distance-locking sonar for control in confined spaces and Go Pro mounting points.

Please click HERE for the product brochure

Warranty: Minimum 1 year (individual components may have longer warranties, please contact us for more information)

Contents

• 1 x M2S Drone ×1
• 1 x RC3 Remote Controller x1
• 1 x 200m Tether ×1
• 1 x Manual Reel x 1
• 2 x Spare motors x 2
• 2 x Chasing Floodlight 2.0 x2
• 1 x GoPro Mounting Base x1
• 1 x PowerCord & 3 in1Charger
• 1 x EPP Storage Box
• 4 x M3 x 8 Screws
• 1 x Support Documents
• 18 x O-rings
• 1 x Towel
• 3 x Data cable
• 1 x Sun Shade
• 1 x Flat wrench
• 1 x Hard case

Specification

ROV

• Dimensions: 380 x 267 x 165 mm
• Weight: 4.5 Kg
• Max depth: 100 m
• Runtime: 4 Hours
• Battery: 97.68 Wh
• Operating temperature: -10°C ~ 45°C
• Max load bearing(X,Y,Z): 2.6, 2.6, 3.2 Kg

Remote Controller

• Size: 160 x 155 x 125 mm
• Weight: 685 g
• Battery: 2,500 mAh
• Runtime: ≥6 Hrs (depending on the environment)
• Wireless: Wi-Fi Supported
• HDMI: Supported
• Handle spring maximum device support size: 10"

Camera

• CMOS: 1/2.3
• Lens: F2.8
• Focal range: 0.3m ~∞
• ISO Range: 100 - 6400 ISO
• Field of view (FOV): 150°
• Max resolution: 12 MP
• File Format: JPEG/DNG
• Video: FHD 1920 x 1080 (1080p) 25/30/50/60/100/120fps / 4K 3840 x 2160 @ 25/30fps
• Slow motion:  4X (1920 x 1080p @ 120fps) / 8X (1280 x 720p @ 240fps)
• Time Lapse: 4K/1080p supported
• Video stream: 60M
• Video File Format: .MP4
• SD Card: 64G

LED

• Brightness: 2 x 2000 Lumens
• Colour temperature: 5,000K - 5,500K
• CRI: 85
• Dimming: Three-step

Sensors

• IMU: Axis gyro/ Accelerometer/ compass
• Depth: <±0.25m
• Temperature sensor: <±2°C

Charger facts

• Power: 2.9A/25.2V
• ROV charging time: 2.5 Hr
• Remote Control Charging time: 2 Hr

Floodlight:

• Dimension: 41.8 cm
• Weight: ~ 432 g
• Angle of depression: -10°
• Horizontal Angle: 360° omnidirectional
• Pressure rating: 150 m depth
• Brightness: 2 x 2000 lm
• Materials: Aluminium, Carbon fiber
