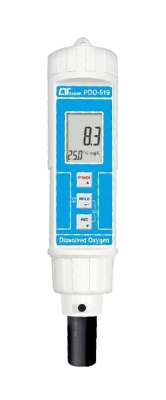

Lutron Dissolved Oxygen Meter PDO-519

About this product

The PDO-519 Digital Dissolved Oxygen Meter has a polarographic type probe with incorporated temperature sensor. It provides precise dissolved oxygen and temperature measurements which can be read from the digital screen simultaneously. The meter automatically compensates for temperature between 0 to 50°C.

The PDO-519 is waterproof (IP67 rating) and has an auto-power off function to maximise battery life. A data hold function freezes the current reading on the screen and a recall function will provide maximum and minimum readings. Powered by four AAA batteries (not included).

The meter is supplied with a soft carrying case, two spare probe heads, electrolyte solution and a user manual.

Recommended reading:
* PDO-519 User Manual

Specification

* Display: Dual function LCD, 29mm x 28mm
* Circuit: Custom one-chip microprocessor LSI circuit
* Range (dissolved oxygen): 0 - 20mg/L
* Range (air oxygen): 0 - 100%
* Range (temperature): 0 - 50°C
* Resolution (dissolved oxygen): 0.1ml/L
* Resolution (air oxygen): 0.1%
* Resolution (temperature): 0.1°C
* Accuracy (dissolved oxygen): ±0.4mg/L
* Accuracy (air oxygen): ±0.7%
* Accuracy (temperature): ±0.8°C
* Sensor structure: Polarographic type oxygen probe with incorporated temp. sensor
* Temperature compensation: 0 - 50°C, automatic adjustment
* Recall: Records maximum/minimum readings with recall
* Power off: Auto power off or manual off using push button
* Data hold: Freezes the display reading
* Sampling time: Approx. one second
* Operating temp: 0 - 50°C
* Operating humidity: 0 - 50°C
* Power supply: 4 x AAA batteries
* Power current: Approx. DC 6.2 mA
* Weight: 176g (including probe and battery)
* Protection: IP67 (0 - 30°C), IP65 (30 - 50°C)
