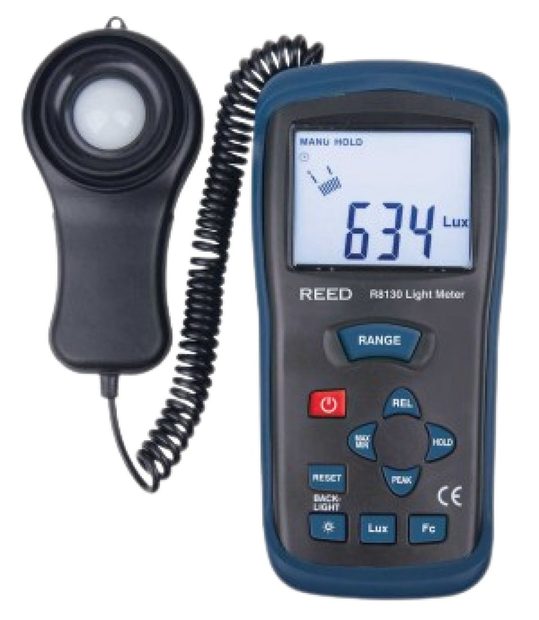

REED R8130 Light Meter

About this product

This light meter is capable of measuring in both Footcandle (Fc) and Lux. The R8130 features an LCD display with a 42-segment analogue bar graph, data hold, min/max, peak and relative functions. The tethered sensor allows for flexible operation while taking measurements.

Contents

• Light Meter
• Sensor Cover
• Protective Holster
• Carrying Case
• Battery

Specification

• Measuring Range(s):

1. Lux: 0 to 400,000
2. Fc: 0 to 40,000

• Accuracy: ±(5% rdg.+ 0.5% Full Scale)
• Repeatability: ±3%
• Resolution: Lux/Fc: 0.01 (Max resolution)
• Response Time: Bargraph: 13.3 times/second Numeric display: 1.3 times/second
• Sensor Type: Photo diode with spectral response filter
• Spectral Response: CIE Photopic (CIE Human Response Curve)
• Spectral Accuracy: CIE Vλ function f1'≤6%
• Cosine Response: f2' ≤2% Display: 3 3/4" (3999) digit LCD
• Digital Analog Bargraph: Yes (42 segment)
• Backlit Display: Yes
• Data Hold: Yes Min, Max and Relative Mode: Yes
• Peak Hold: Yes
• Overrange Indicator: Yes
• Auto Shut-Off: Yes (after 30 mins)
• Kick Stand: Yes
• Tripod Mountable: Yes
• Low Battery Indicator: Yes
• Power Supply: 9V battery
• Product Certifications: CE
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Storage Temperature: 14 to 140°F (-10 to 50°C)
• Operating Humidity Range: 10 to 80%
• Dimensions: 7.4 x 2.5 x 1" (188 x 64.5 x 24.5mm)
• Weight: 14.2oz (403g)
