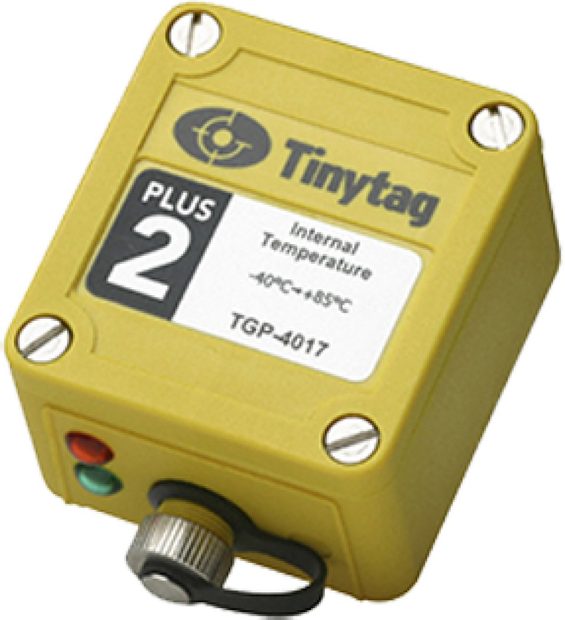

Small, powerful, easy to use and offering many advanced features, loggers from the Tinytag Plus range are the ideal choice for most professional logging applications. The large memory, two programmable alarms, a delayed start time and the ability to offload data whilst still logging all come as standard. The rugged IP68 casing is environmentally sealed, submersible to a depth of 15 m and resistant to most chemicals making this logger suitable for use under most conditions. Ideal for external environmental monitoring.
This model measures temperature via an internal sensor.
To use this logger you will need a PC, a cable and software.
Sensor Details:
* Range: -40° to +85°C / -40° to +185°F
* Sensor Type: 10K NTC Thermistor (encapsulated)
* Sensor Location: Internally mounted
* Response Time: 25 mins to 95% FSD in moving air
* Sensor Accuracy: Between 0° & 40°C: +/- 0.5°C
* Resolution: 0.01°C or better
Features:
* Memory Size: 64k memory chip
* No. of Readings: approximately 32,000
* Resolution: 16 bit
* Trigger Start: Magnetic reed switch
* Delayed Start: Relative / Actual up to 45 day
* Stop Options: When full / after n readings / never (wrap around)
* Reading Types: Actual / Min / Max
* Logging Interval: 1 s to 10 days
* Offload: When not logging or when logging in minute multiples
* Alarms: 2, fully programmable; latchable
* Functional Range: -40° to +85°C / -40° to +185°F
* IP Rating: IP68 waterproof
* Battery Life: Replacement recommended annually
Physical features:
* Case Style: IP68 style
* Weight: 110g
* Dimensions of Case: 34 x 51 x 80mm
