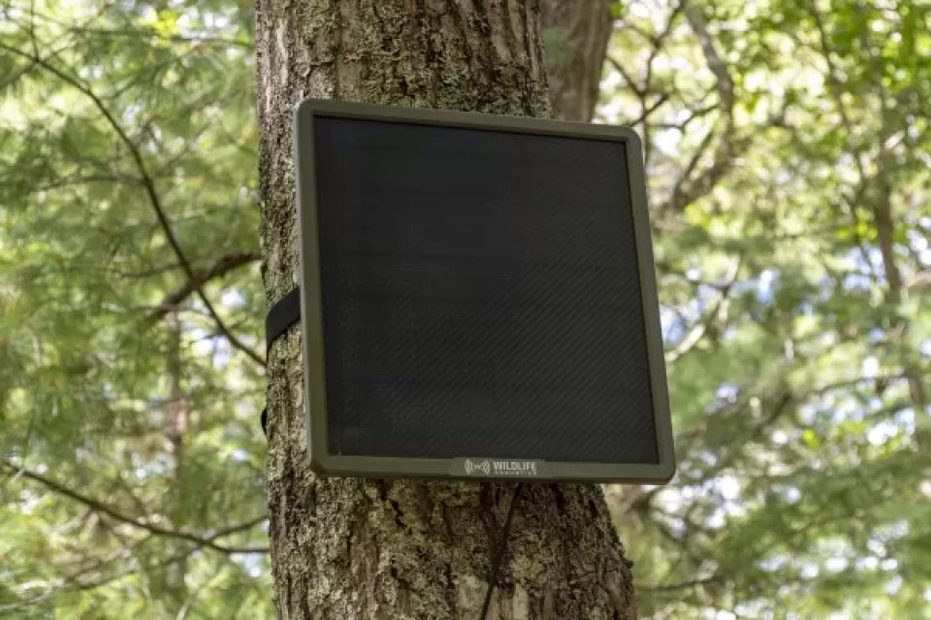

The Solar Power Kit (for SM4/SM4BAT FS SM3)

About this product

The Power Kit is a combined solar panel and rechargeable, lithium-ion battery designed for the Song Meter SM3 and SM4 families of recorders. Includes mounting accessories and a Song Meter power cable. Pre-charge the Power Kit using the included USB-A to USB-C cable. USB power supply not included. Compatible with the Song Meter SM4, Song Meter SM4BAT FS, Song Meter SM4BAT ZC, Song Meter SM3 and Song Meter SM3BAT.

Contents

• Power Kit
• 4017 barrel to 5-pin cable (2 m)
• USB-A to USB-C cable
• Screw-in mounting arm
• Plastic anchor plug (10 mm × 50 mm)
• Gimbal head
• Mounting strap (1.5 m)
• Ferrite collar
• Cable tie
• 3511-4017 barrel cable

Specification

• Battery Capacity: 92.5 Wh
• Battery Type: Lithium-ion
• Maximum Solar Power Generation: 10 W
• Output Voltage × Current: 12 V × 2 A, 9 V × 2.6 A, 6 V × 4 A
• Solar Panel Material: Monocrystalline silicon
• Operating Temperature: -20 °C to 60 °C
• Weather Protection: IP66-rated, weatherproof
• Time to Full Charge: USB-C input, 5 V / 2 A: ~12 hours, USB-C input, 20 W USB-C power supply: ~6 hours
• Input Barrel Cable: 4017 center-positive
• Output Barrel Cable: 3511 center-positive
• Dimensions: 27 cm × 26 cm × 5.2 cm
• Weight: 1.4 kg
