H2d Hydrophone

Affordable, high-quality underwater microphone
Impressive sensitivity and low self-noise
Widely compatible with other audio gear

Click to have a closer look

Select product (7)

3.5mm Jack - 3m Not in stock: Usually dispatched within 1 week
£195.83
#260428
3.5mm Jack - 50m Not in stock: Usually dispatched within 1 week
£350.83
#265808
3.5mm Jack - 9m In stock
£216.67
#260430
3.5mm Jack - 15m In stock
£237.50
#260429
XLR - 3m In stock
£200.00
#260431
XLR - 9m In stock
£220.83
#260432
XLR - 15m In stock
£241.67
#260433

Selected product: £195.83

About this product Specification Customer reviews

Images Additional images

About this product

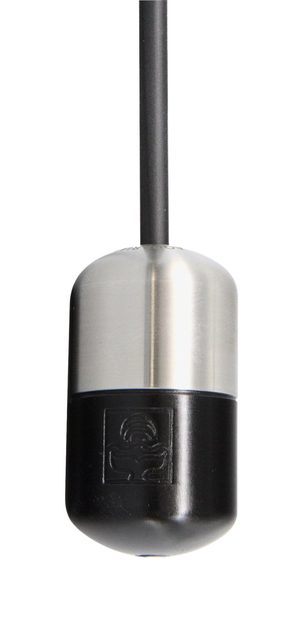

The H2d hydrophone is an impressive piece of acoustic engineering, combining a robust design and high-quality components into an excellent product for those looking to make clear recordings of the underwater world. It is available with either a 3.5mm jack connection, compatible with a wide range of recording devices including those that require plug-in power (3.5mm jack only), or an XLR connection, suitable for use with any PA system or recording device that offers a balanced, phantom-powered, microphone input. The CS6 signal development board provides around 10dB improved sensitivity compared to its predecessor, and the design minimises distracting background noise in recordings. It has a small, streamlined shape that helps maintain it's position in the water column, and the robust stainless steel core with urethane rubber transducer make it eminently portable for fieldwork.

The H2d is available with a 3m, 9m, or 15m cable. When producing underwater recordings, it is best to purchase a cable length that will allow for the hydrophone to be suspended as close to the centre of the water column as possible, as reverberations of the bottom or the surface will interfere with the recording.

Specification

3.5mm Version

Sensitivity: -172dB re: 1V/μPa (+/- 4dB 20Hz-4KHz)
Useful range: <10 Hz to >100KHz (not measured above 100KHz, approximate sensitivity @100KHz = -210dB re: 1V/μPa)
Polar Response: Omnidirectional (horizontal)
Operating depth: <80 meters
Output impedance: 1.1 KΩ (typical)
Power: 0.7 mA (typical)
Minimum PIP req.: 2V, 0.7mA
Dimensions: 25mm x 46mm
Mass: 105 grams
Specific Gravity: 5.3

XLR Version

Sensitivity: -165dB re: 1V/μPa (+/- 4dB 20Hz-4KHz)
Useful range: <10 Hz to >100KHz (not measured above 100KHz, approximate sensitivity @100KHz = -210dB re: 1V/μPa)
Polar Response: Omnidirectional (horizontal)
Operating depth: <80 meters
Output impedance: 6.8 KΩ (typical)
Power: 1.2 mA (typical)
Dimensions: 25mm x 46mm
Mass: 105 grams
Specific Gravity: 5.3
