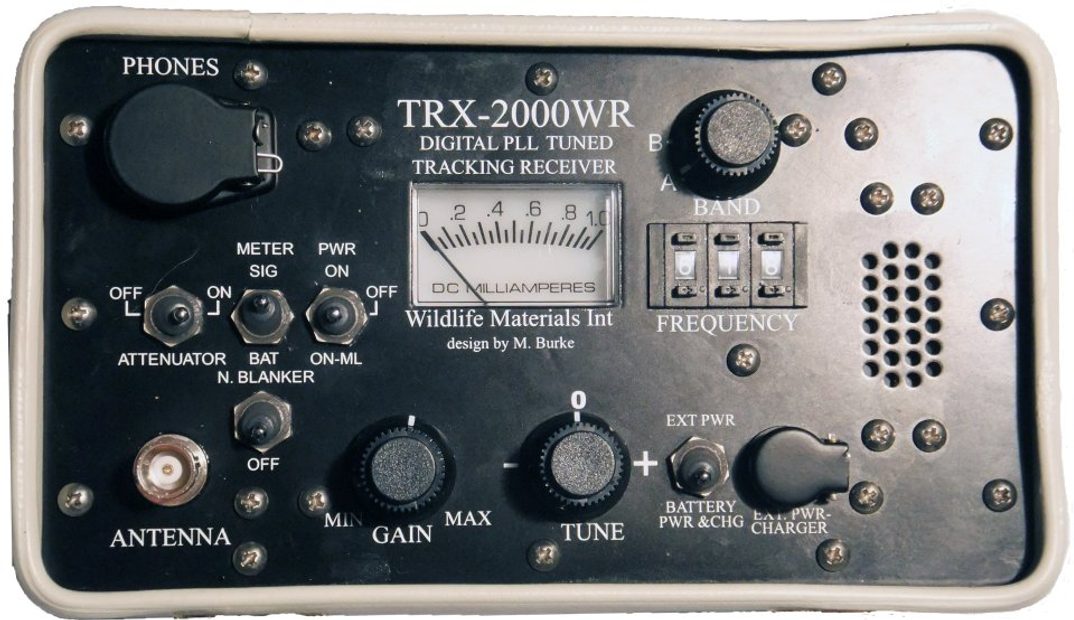

TRX-2000S WR Water Resistant Telemetry Receiver

About this product

The TRX-2000S WR water-resistant radio telemetry receiver is able to monitor up to 400 animals across 2 frequency bands, providing superb quality, comprehensive tracking coverage.  The expanded frequency range helps avoid interference on crowded bands and the crystal controlled synthesizer tunes in up to 200 frequencies per band.  The TRX-2000S receiver has improved digital circuitry to enable fast, accurate tuning of transmitter signals.  Noise-reducing digital audio filters reduce background noise drop away to clarify signal and ensure greater sensitivity.  The TRX-2000S has a noise blanking circuit to reduce unwanted noise and an attenuator to reduce signal swamping when the transmitter is close to the antenna.  The nickel hydride battery can be charged from mains power and has virtually no memory build-up and the receiver can be powered directly from a 12 V car battery with the included cable.  The TRX-2000S WR model has a water-resistant case and faceplate to enable use of the receiver in rain to increase the range of conditions under which the unit can be used.

Key Features
* 400 channels
* Compact robust case, weighs 1273g
* Noise blanking circuit switch to reduce unwanted interference
* Attenuator
* Signal meter needle with backlight for night tracking
* Rechargeable nickel hydride batteries provide 6-8 tracking hours, from mains charge
* Recharge unit, DC 12V cigarette lighter charger, padded nylon carrying case included
* Lid-mounted throwaway batteries can also be purchased to extend battery life
* TRX-2000S WR has water-resistant case and faceplate

Available programmed at 150 + 151MHz or 172 + 173MHz. Please contact us if you require a different frequency range or if you have existing transmitters that you need your receiver to be compatible with.

Specification

Specifications

* Noise Figure: 2.5 dB or better
* Input Impedance: 50 ohms +/- 10%
* Frequency Range: 150+151 MHz or 172+173MHz
* Frequency Stability: +/- 1 KHz maximum (-20 degrees to +70 degrees C)
* Image and Spurious Rejection: 60 db or better
* Minimum Discernible Signal: -150 dBm (.007 microvolts) or better
* Circuit Design: Modern dual conversion superheterodyne circuit with 8 pole crystal filter and 40 dB AGC range
* Manual Gain Range: 90 dB or better
* Frequency Readout: Digital, direct reading in 1 KHz steps; analog delta tune +/- 3 KHz from centre frequency
* Tuning: Three-digit, dust resistant, push wheel switches control digital quartz-locked
* PLL synthesizer
* Sweep: N.A.
* Frequency Resetability: To +/- 500 Hz
* Signal Metering: 0-1 scale meter with high dynamic range circuit, gives minimum sensitivity of -143 dBm, 27 dB dynamic range, and backlight for night tracking
* Noise Blanking Circuit: Removes most impulse and ignition noise to enhance tracking in difficult conditions
* Operating Voltage: 10-15 VDC through external DC jack (fused cigarette lighter cord included) or internal 10-AA cell nickel hydride rechargeable battery pack
* Weight: 1283 g
* Dimensions: 183 x 115 x 123 mm
